Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Name : Bridge Weigh In Motion

Voltage : AC 110V~220V

Weighing error : 3%~10%

Speed rate : 0.5~105km/h

Axle load : 40T (single axle)

Single axle overload : 150%

Division value : 50kg

MTBF : ≥20000h

Temperature range : -45~+80℃

Protection level : IP68

Contact Now

0.5~105km/H High Speed Dynamic Bridge Protection System & WIM Scales

Product Function

The traffic load of highway and bridge is one of the key variables in the design and Performance Research of highway and bridge. The traffic load distribution of pavement and bridge is the key to understand the degradation of pavement and bridge and evaluate the design. Effectively obtaining traffic data including road and bridge loads is an important task of highway traffic investigation. The high-speed dynamic vehicle weighing system can detect the weight, speed, flow, spacing and vehicle type of running vehicles without affecting the normal traffic of roads and bridges.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

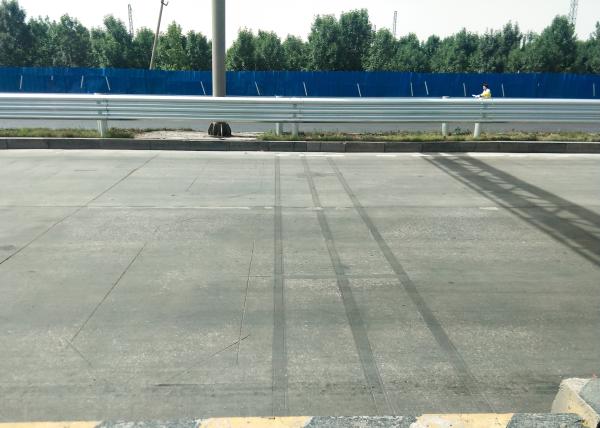

Project Case

​Hengliang Bridge Weigh In Motion Scales 8 lanes Truck Axle Scales
